Hobie 16 Traveler replacement  Bottom

  • christopher_g_lewis

    Lubber
    • Rank: Lubber
    • Registered: Mar 15, 2012
    • Last visit: Feb 10, 2022
    • Posts: 17
    Link to this post Posted: May 13, 2013 - 01:35 PM
    Hi - I've got an old 1974 Hobie 16 that I bought last summer. Had a great year of sailing and learning, but there are several things I need to work on.

    The current concern is upgrading the traveler. Most of the 16's on the beach have the traveler car, but mine does not - it just has a piece of metal for the traveler. From the side, it would look like an inverted "T", from the front its a half circle with three holes.

    http://i1275.photobucket.com/albums/y447/Christopher_G_Lewis/Hobie16/WP_000328_zpsc5d7b9ef.jpg

    It does not have the "contoured pad" for the cam cleat.

    I would have thought that I could just get it out and replace it with a new car (the tracks seem about the same depth) but looking at it, I think I'd have to drill out the rivets on the track in order to get it high enough to get the old one out and put the new one in.

    Any thoughts?

    --
    Chris Lewis
    Wilmette, IL
    --
  • carolinacatamarans

    Lubber
    • Rank: Lubber
    • Registered: Apr 10, 2013
    • Last visit: Oct 25, 2015
    • Posts: 94
    Link to this post Posted: May 13, 2013 - 04:45 PM
    How well does it slide? The other option is to take the frame apart and epoxy it together while you are at it.
  • windadict
    windadict
    Mate
    • Rank: Mate
    • Registered: Aug 27, 2011
    • Last visit: Jun 15, 2015
    • Posts: 153
    Link to this post Posted: May 13, 2013 - 09:11 PM
    Yes, you would have to drill and rivet new track. I don't know how handy you are but it is not that difficult. Last year I replaced track on my SolCat 18 with one from Hobie 16 and it took total 1.5 hours. The biggest problem I had, was to get low profile riverter tip to fit inside the track. Luckly there is a guy on my beach (Glencoe) that has all the tools, lots of replacement parts and he offers service to anyone who needs some work on their boat. His prices are more than reasonable and quality is high. I can put you in contact with him if you like.

    --
    Adam Bartos
    Nacra 5.0
    SolCat 18 (sold)
    Lake Zurich, IL
    --
  • pbegle
    pbegle
    Mate
    • Rank: Mate
    • Registered: Mar 12, 2003
    • Last visit: Feb 19, 2021
    • Posts: 879
    Link to this post Posted: May 13, 2013 - 09:22 PM
    Not necessary. You simply put a small nut over the shaft of the rivit & gun will pull it. Sometimes I drill threads out of small nut. Have several travelers, check my classifieds. Takes about 5 minutes to change--just jam a screw driver under track after drilling out rivits. Must use beveled rivits to replace. Pete
  • christopher_g_lewis

    Lubber
    • Rank: Lubber
    • Registered: Mar 15, 2012
    • Last visit: Feb 10, 2022
    • Posts: 17
    Link to this post Posted: Jun 28, 2013 - 06:46 PM
    windadictYes, you would have to drill and rivet new track. I don't know how handy you are but it is not that difficult. Last year I replaced track on my SolCat 18 with one from Hobie 16 and it took total 1.5 hours. The biggest problem I had, was to get low profile riverter tip to fit inside the track. Luckly there is a guy on my beach (Glencoe) that has all the tools, lots of replacement parts and he offers service to anyone who needs some work on their boat. His prices are more than reasonable and quality is high. I can put you in contact with him if you like.


    Adam - sent you a personal email - can you contact me with the guy in glencoe? I'm in Wilmette so an easy trip for him, and I'd end up with a much easier boat to sail.

    Chris

    --
    Chris Lewis
    Wilmette, IL
    --
  • downsjn

    Lubber
    • Rank: Lubber
    • Registered: Aug 13, 2015
    • Last visit: Sep 09, 2015
    • Posts: 2
    Link to this post Posted: Sep 07, 2015 - 03:05 AM
    I just bought a 16 with this old style traveler, i'm sure i didn't rig it right (i'm used to the car style traveler.)

    looks like you just feed a line through the simple metal cleat and tie it off on one of the small holes on the side, for each side. correct? am i missing something?

    Bought the boat for 1$! had enough parts to rig it, sailed it. best dollar i ever spent.

    also, one of the hulls is soft in the middle under the tramp. anybody ever had one fail catastrophically?

    thanks,
    john
  • pbegle
    pbegle
    Mate
    • Rank: Mate
    • Registered: Mar 12, 2003
    • Last visit: Feb 19, 2021
    • Posts: 879
    Link to this post Posted: Sep 07, 2015 - 11:49 AM
    Yes, I have. Took a couple H-16's to La Paz about 25 years ago. Didn't know about the soft deck problem. Sold one and the guys called me a week later--the bow had broken off about 100 yards offshore. They were able to get in and I gave them pair of good hulls next day. When you sheet in hard in even medium wind conditions, that load (400-500 lbs ?) goes up leach of mainsail, down the forestay & bridles and tries to pull bow up. With soft decks, you've lost one face of a triangle and bow just folds. Don't even think about sailing with a soft hull. Pete
  • rattlenhum
    rattlenhum
    Mate
    • Rank: Mate
    • Registered: Aug 01, 2002
    • Last visit: Apr 28, 2024
    • Posts: 419
    Link to this post Posted: Sep 08, 2015 - 08:45 AM
    Sounds like Adam has you fixed up, but in case you end up tackling this yourself, I'll share my "experience".....

    First, Hobie's traveler replacement instructions are here:

    http://static.hobiecat.co…m_attachments/105z52.pdf

    The job is a little finicky and made much easier with the proper tools. SS rivets are very hard to pull with a basic hand puller....I wish I'd bought a heavy duty one a long time ago:

    http://www.harborfreight.…ection-bottle-66422.html

    As Adam suggests, a nose piece that fits inside the track will help. Pete's trick will work too, but the nut (I used washers) must not be too thick; otherwise the jaws of the puller won't grab the mandrel properly.

    I highly recommend that you plan for a failed pull or two.......have a spare drill battery and spares of the flat headed, countersunk rivets on hand before you start this process. Around here, at least, no one has stuff like that sitting on the shelves.

    As you can probably tell now, I really do have "experience" with this project, but it wasn't all good "experience." icon_smile

    Good luck!



    Edited by rattlenhum on Sep 08, 2015 - 08:49 AM.

    --
    Jerome Vaughan
    Hobie 16
    Clinton, Mississippi
    --
  • leeboweffect
    leeboweffect
    Mate
    • Rank: Mate
    • Registered: Apr 22, 2015
    • Last visit: May 21, 2023
    • Posts: 484
    Link to this post Posted: Sep 08, 2015 - 11:25 AM
    John, your current car is off of an OLD Hobie 14:

    http://www.ebay.com/itm/Hobie-14-Main-Traveler-Car-Old-Style-Catamaran-Sailboat-/151083934977?hash=item232d4de501&vxp=mtr

    You need this car:

    http://www.murrays.com/07-1050.html

    Note: You can find this car much cheaper used on ebay, but be careful as often the used ones have issues with the needle bearings missing, bent, being worn out and/or dirty and don't roll as intended. If you buy a used one in good condition, clean it well (including the holes that the needle bearings go through) and lube it with some silicon prior to assembly.

    You will have to drill out the two or three rivets at the end to get the old one out and install the new one. The rivets you need are:

    http://www.murrays.com/19-5024.html

    If you want to go whole hog, get this:

    http://www.murrays.com/07-1040.html

    Cheers



    Edited by leeboweffect on Sep 08, 2015 - 07:03 PM.

    --
    Hobie 16 (3 formerly)
    MacGregor 25 (formerly)
    Chrysler Dagger 14 (formerly)
    NACRA 5.0 (currently)
    High Point, NC
    --
  • pbegle
    pbegle
    Mate
    • Rank: Mate
    • Registered: Mar 12, 2003
    • Last visit: Feb 19, 2021
    • Posts: 879
    Link to this post Posted: Sep 08, 2015 - 12:36 PM
    Have several of those replacement traveler car used for $25 (plus$6 shipping) and will include beveled rivits plus 2 small nuts to put atop rivit shaft in order to pull it. Entire job should take no more than 10 minutes. Pete
  • Dogboy

    Mate
    • Rank: Mate
    • Registered: Mar 19, 2004
    • Last visit: Apr 12, 2024
    • Posts: 960
    Link to this post Posted: Sep 08, 2015 - 01:28 PM
    downsjn
    also, one of the hulls is soft in the middle under the tramp. anybody ever had one fail catastrophically?


    It will probably sail fine, and then one day you will flip and end up standing there to right the boat at which point you will hear crunching, followed by a "glug, glug, glug" and then find yourself up to your waist in water with the mast laying horizontal on the water....

    Yes, they can fail. Soft spots mean that the hull structure is compromised. It needs to be fixed or scrapped.

    sm
  • leeboweffect
    leeboweffect
    Mate
    • Rank: Mate
    • Registered: Apr 22, 2015
    • Last visit: May 21, 2023
    • Posts: 484
    Link to this post Posted: Sep 08, 2015 - 02:48 PM

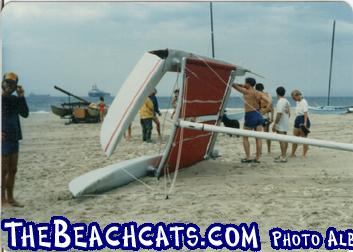

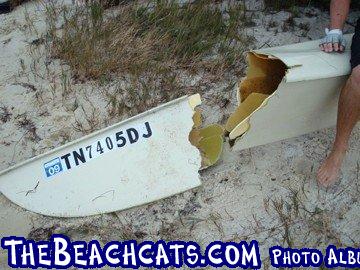

    downsjnalso, one of the hulls is soft in the middle under the tramp. anybody ever had one fail catastrophically?


    http://www.thebeachcats.com/gallery2/main.php?g2_view=core.DownloadItem&g2_itemId=119799&g2_serialNumber=3

    http://www.thebeachcats.com/gallery2/main.php?g2_view=core.DownloadItem&g2_itemId=119800&g2_serialNumber=3

    http://www.thebeachcats.com/gallery2/main.php?g2_view=core.DownloadItem&g2_itemId=119801&g2_serialNumber=3

    It does happen and can be dangerous.

    --
    Hobie 16 (3 formerly)
    MacGregor 25 (formerly)
    Chrysler Dagger 14 (formerly)
    NACRA 5.0 (currently)
    High Point, NC
    --
  • downsjn

    Lubber
    • Rank: Lubber
    • Registered: Aug 13, 2015
    • Last visit: Sep 09, 2015
    • Posts: 2
    Link to this post Posted: Sep 09, 2015 - 03:11 PM
    leeboweffectJohn, your current car is off of an OLD Hobie 14

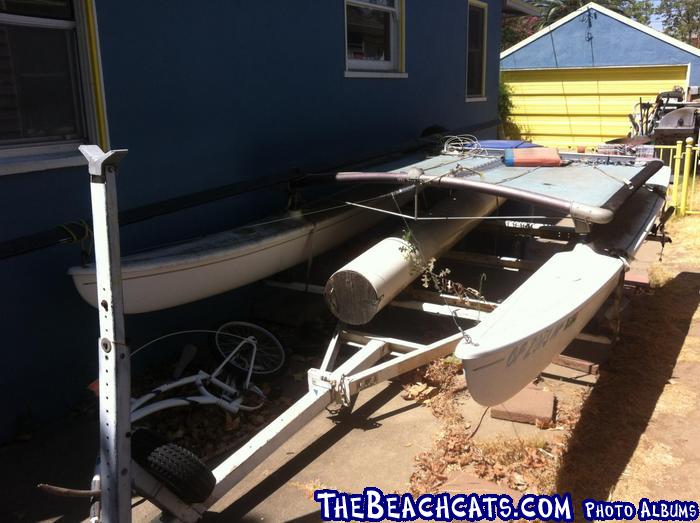

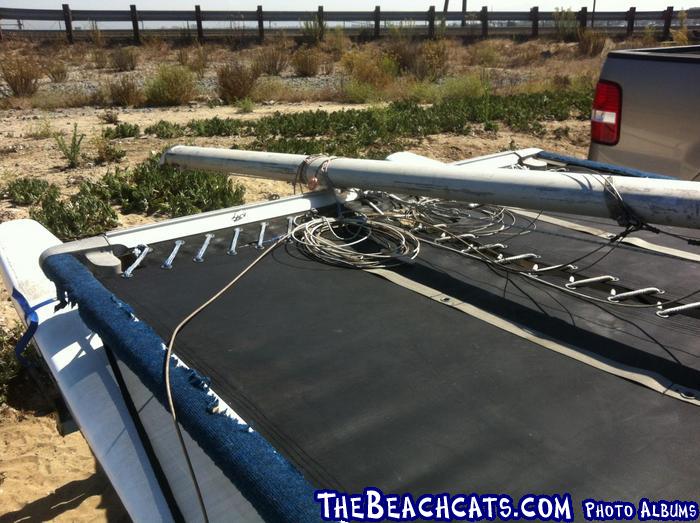

    here's a crummy photo
    http://www.thebeachcats.com/gallery2/main.php?g2_view=core.DownloadItem&g2_itemId=119806&g2_serialNumber=4
    can you see that on the back cross bar there is a simple metal cleat in the middle of the starboard side, i figured that was for the traveler.

    there was also the swiveling cleat in the middle for the normal H16 but no eyelet under the rear crossbar for the end of the main traveler sheet. how is a set up like this supposed to be rigged? what were those little cleats for?

    there was also a single swivel cleat (like the one in the rear for the main traveler sheet) on the front cross bar. What's that one for? it was only on one side and not for use with the jib sheet, the jib blocks had cleats on them) here's another crummy photo of the hardware i'm describing...it was on my old 14 too.http://www.thebeachcats.com/gallery2/main.php?g2_view=core.DownloadItem&g2_itemId=119851&g2_serialNumber=4 you can see it on the port side of the mast step ...if you squint

    anyway i had it out two days, all day, in and out of 5 foot surf, with the main traveler rigged two different ways, none with any mechanical advantage for me.

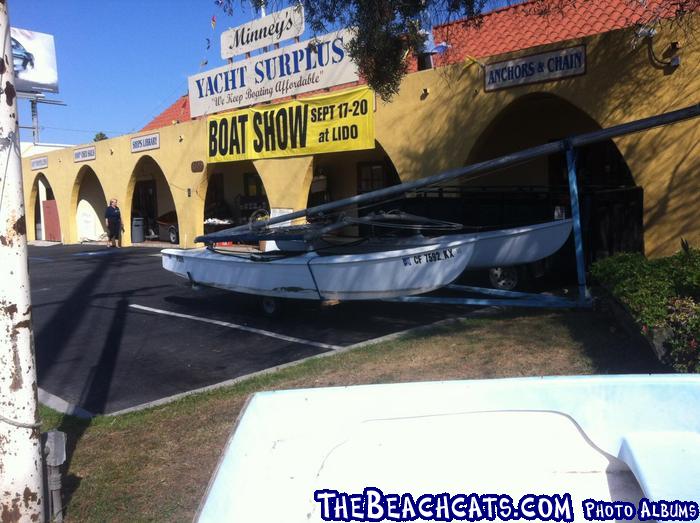

    sister wouldn't let me keep it at the beach, tried to donate it, ended up selling the $1 boat for 50 bucks to one of the salesmen at Minney's. everybody was happy.
    http://www.thebeachcats.com/gallery2/main.php?g2_view=core.DownloadItem&g2_itemId=119811&g2_serialNumber=4

    now it's someone else's joy/problem.



    Edited by downsjn on Sep 09, 2015 - 01:30 PM.
  • leeboweffect
    leeboweffect
    Mate
    • Rank: Mate
    • Registered: Apr 22, 2015
    • Last visit: May 21, 2023
    • Posts: 484
    Link to this post Posted: Sep 09, 2015 - 10:45 PM
    John, I'm not sure how it all rigs up. It's a very unusual arrangement! Celebrate that you got to have some fun and make $ 49 on the boat!

    Cheers,

    prost

    --
    Hobie 16 (3 formerly)
    MacGregor 25 (formerly)
    Chrysler Dagger 14 (formerly)
    NACRA 5.0 (currently)
    High Point, NC
    --
  • wxguy

    Lubber
    • Rank: Lubber
    • Registered: Jul 20, 2016
    • Last visit: Jan 15, 2024
    • Posts: 56
    Link to this post Posted: Jan 15, 2024 - 01:39 PM
    spammer1
    spam links

    -----------------------------------------------------------------------------------------------------------------------------
    What the heck is this CRAP??

    --
    Master UniRig Sailor
    --
  • DamonLinkous
    DamonLinkous
    Administrator
    • Rank: Administrator
    • Registered: Jul 19, 2001
    • Last visit: Apr 01, 2024
    • Posts: 3428
    Link to this post Posted: Jan 19, 2024 - 06:27 PM
    wxguy
    spammer1
    spam links

    -----------------------------------------------------------------------------------------------------------------------------
    What the heck is this CRAP??

    Apologies, an issue with the forum software is allowing unregistered spammers to post. I'm trying to stay ahead of it and deleting new ones as they come up but it's difficult.

    Until I find a solution please avoid quoting the spammer content. If you quote it and I delete the spam post the quotation remains with the spammer links.

    --
    Damon Linkous
    1992 Hobie 18
    Memphis, TN

    How To Create Your Signature

    How To Create Your Own Cool Avatar

    How To Display Pictures In The Forums.
    --
  • westmatt
    westmatt
    Lubber
    • Rank: Lubber
    • Registered: Sep 23, 2022
    • Last visit: Apr 11, 2024
    • Posts: 79
    Link to this post Posted: Feb 14, 2024 - 12:38 PM
    There would appear to be a security/authentication issue at play since the downtime...unless there is some connection between sailing and fungi.



    Edited by westmatt on Feb 14, 2024 - 10:38 AM.
