Nacra 5.2 rudder bar (ackerman) angle?  Bottom

  • aquaaddict

    Lubber
    • Rank: Lubber
    • Registered: Aug 04, 2013
    • Last visit: Aug 09, 2021
    • Posts: 48
    Link to this post Posted: May 08, 2016 - 06:11 AM
    Hi,

    The rudder bars on my 5.2 are currently straight and I want to bend them to the correct angle whilst I have them all apart, does anyone know what angle was used on the 5.2 from the factory or have one they can measure please?

    Thanks!


    Anthony
  • Edchris177
    Edchris177
    Chief
    • Rank: Chief
    • Registered: Nov 26, 2009
    • Last visit: Apr 10, 2024
    • Posts: 2524
    Link to this post Posted: May 08, 2016 - 12:24 PM
    I personally wouldn't bother, the gain is not significant. I see cannot tell the difference between my 5.7 (angled), & the 5.0-straight.
    However, I do understand that Cat people like to tinker!
    Here is a photo of my 5.7 tiller. I don't know the actual angle.
    http://www.thebeachcats.com/gallery2/main.php?g2_view=core.DownloadItem&g2_itemId=103608&g2_serialNumber=4



    Edited by Edchris177 on May 08, 2016 - 12:26 PM.

    --
    Hobie 18 Magnum
    Dart 15
    Mystere 6.0XL Sold Was a handful solo
    Nacra 5.7
    Nacra 5.0
    Bombardier Invitation (Now officially DEAD)
    Various other Dock cluttering WaterCrap
    --
  • jaybird1111

    Lubber
    • Rank: Lubber
    • Registered: Feb 20, 2012
    • Last visit: Nov 18, 2017
    • Posts: 38
    Link to this post Posted: May 10, 2016 - 03:57 PM
    Here ya go:
    http://www.swingcat.co.uk/how/bridgedeck/ackermann_steering.pdf
  • arch
    arch
    Mate
    • Rank: Mate
    • Registered: Jan 25, 2004
    • Last visit: Apr 06, 2021
    • Posts: 267
    Link to this post Posted: May 11, 2016 - 12:03 AM
    anthony,

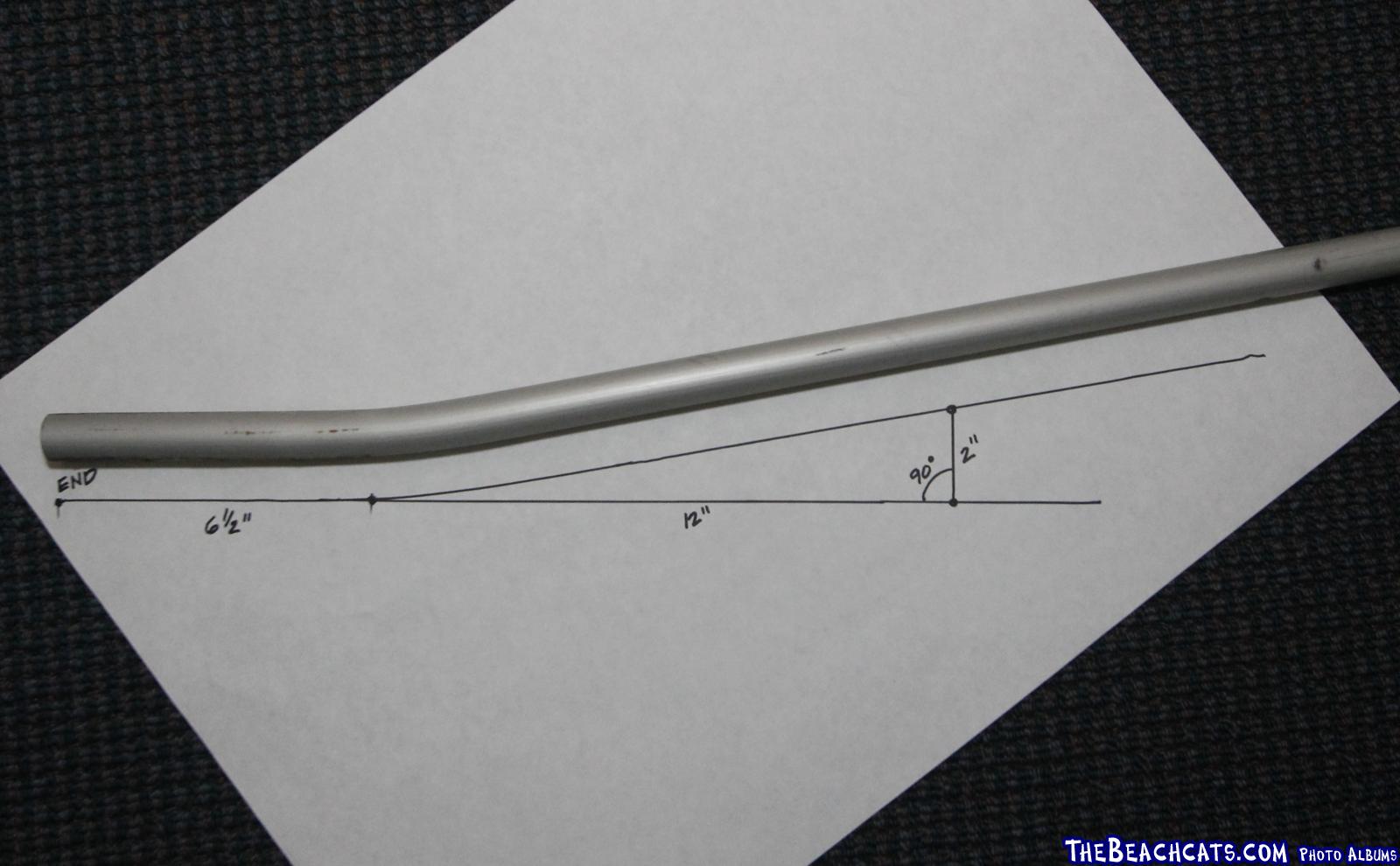

    here is a photo of a tiller arm from my 1991 Nacra 5.8. it could be similar to what you want.

    http://www.thebeachcats.com/gallery2/main.php?g2_view=core.DownloadItem&g2_itemId=120678&g2_serialNumber=3

    caution: i tried to do what you are hoping to do by bending a straight tiller arm using a vice. after (visibly) stressing the outer surface, it cracked the tubing. if you're going to bend the tubing, use a conduit bender like electricians use. just a suggestion.
    j

    --
    Aquacat 12 (sold)...'87 Nacra 5.8 (sold)...'03 Nacra Inter18 (sold)
    Venture 15 (sold)....'89 Nacra 5.8 (sold)...'91 Nacra 5.8NA (sold)
    '99 Nacra Inter20 (sold)
    --
  • leeboweffect
    leeboweffect
    Mate
    • Rank: Mate
    • Registered: Apr 22, 2015
    • Last visit: May 21, 2023
    • Posts: 484
    Link to this post Posted: May 13, 2016 - 10:54 AM
    Edhris177I personally wouldn't bother, the gain is not significant.


    I'm with Ed on the not worth fussing with notion. I suggest you check your rudder alignment before you do anything. If it's dead straight to very slightly toed in (up to 1/8") leave it alone. Here's what I went through.

    http://www.thebeachcats.com/index.php?module=forums&func=viewtopic&topic=15766

    --
    Hobie 16 (3 formerly)
    MacGregor 25 (formerly)
    Chrysler Dagger 14 (formerly)
    NACRA 5.0 (currently)
    High Point, NC
    --
