What is this rudder system from?

Edchris177

Rank: Chief

Registered: Nov 26, 2009

Last visit: Aug 10, 2024

Posts: 2531
Posted: Oct 27, 2011 - 07:21 PM

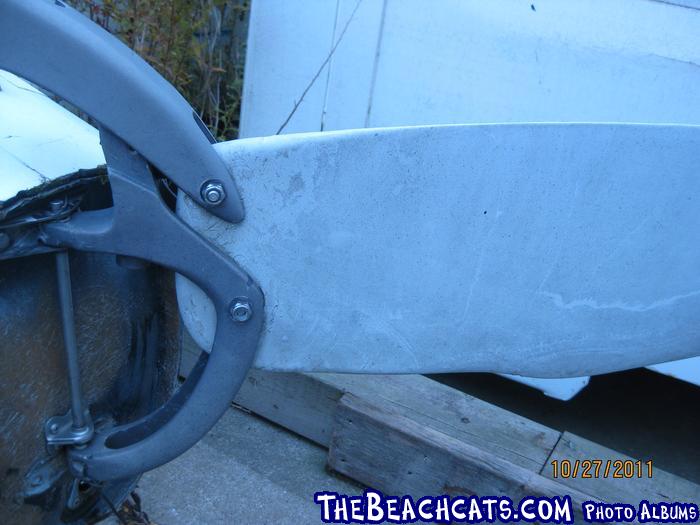

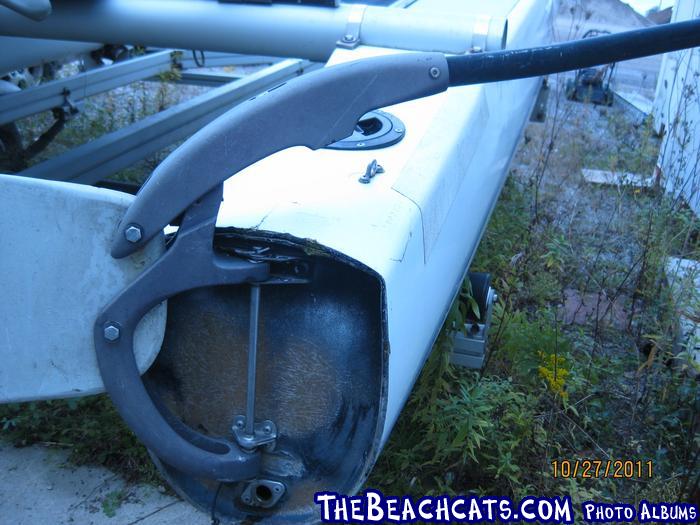

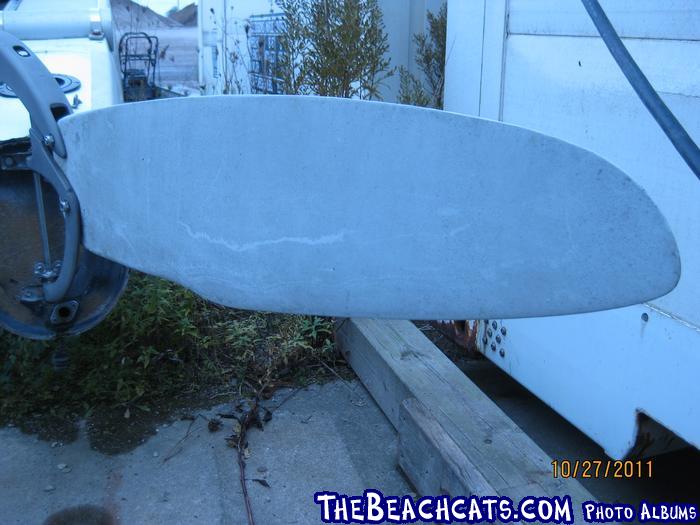

These rudders were on a Nacra 5.2 that got wrecked. I'm wondering what Hobie they were from originally. I'd like to sell them as tiller/casting /rudder, or the complete setup with tiller tie bar, but I don't know what model they were from. Clicking on photo will expand to full size.

Edited by Edchris177 on Oct 27, 2011 - 07:51 PM.

--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
--
rehmbo

Rank: Mate

Registered: Apr 27, 2011

Last visit: Dec 13, 2022

Posts: 163
Posted: Oct 28, 2011 - 06:10 AM

Looks an awful lot like my H18 castings. Same rake adjustment screw is visible in bottom left of first photo.
Upper gudgeon on the transom looks original. Lower one was replaced with Hobie style.

--
Jeff R
'88 H18 "Jolly Mon"
'10 C2 USA1193
NE IN / SE MI
cramsailing.com
--
MN3

Rank: Master Chief

Registered: Jun 20, 2006

Last visit: Dec 04, 2024

Posts: 7090
Posted: Oct 28, 2011 - 07:00 AM

QuoteLooks an awful lot like my H18 castings.

I agree
are they all alum (old style) or do they have some rubber parts inside (upgrade)
DanBerger

Rank: Mate

Registered: Oct 02, 2002

Last visit: Aug 13, 2020

Posts: 214
Posted: Oct 28, 2011 - 08:07 AM

That is the 'new style' Hobie 17 or 18 rudder system. Looks like the rudders are the older, softer style--the bendy ones.
Edchris177

Rank: Chief

Registered: Nov 26, 2009

Last visit: Aug 10, 2024

Posts: 2531
Posted: Oct 28, 2011 - 09:09 AM

Thanks guys. I believe the blades are a plastic. I'm not sure what is is inside, I never messed with them. There is a stainless bolt head about 1/2 way down the top curved part of the casting. I should have taken a few more photos.
They work well, a pull on the arm to flip them up or down. I like that they lock up. My Nacra uses the bungees & while it works, it seems the bungees have to be replaced every season. Once they start to wear the rudders hang down a bit, then I have to be very careful sliding the boat back on the lift, or they catch on the frame.

--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
--
Edchris177

Rank: Chief

Registered: Nov 26, 2009

Last visit: Aug 10, 2024

Posts: 2531
Posted: Nov 04, 2011 - 07:57 PM

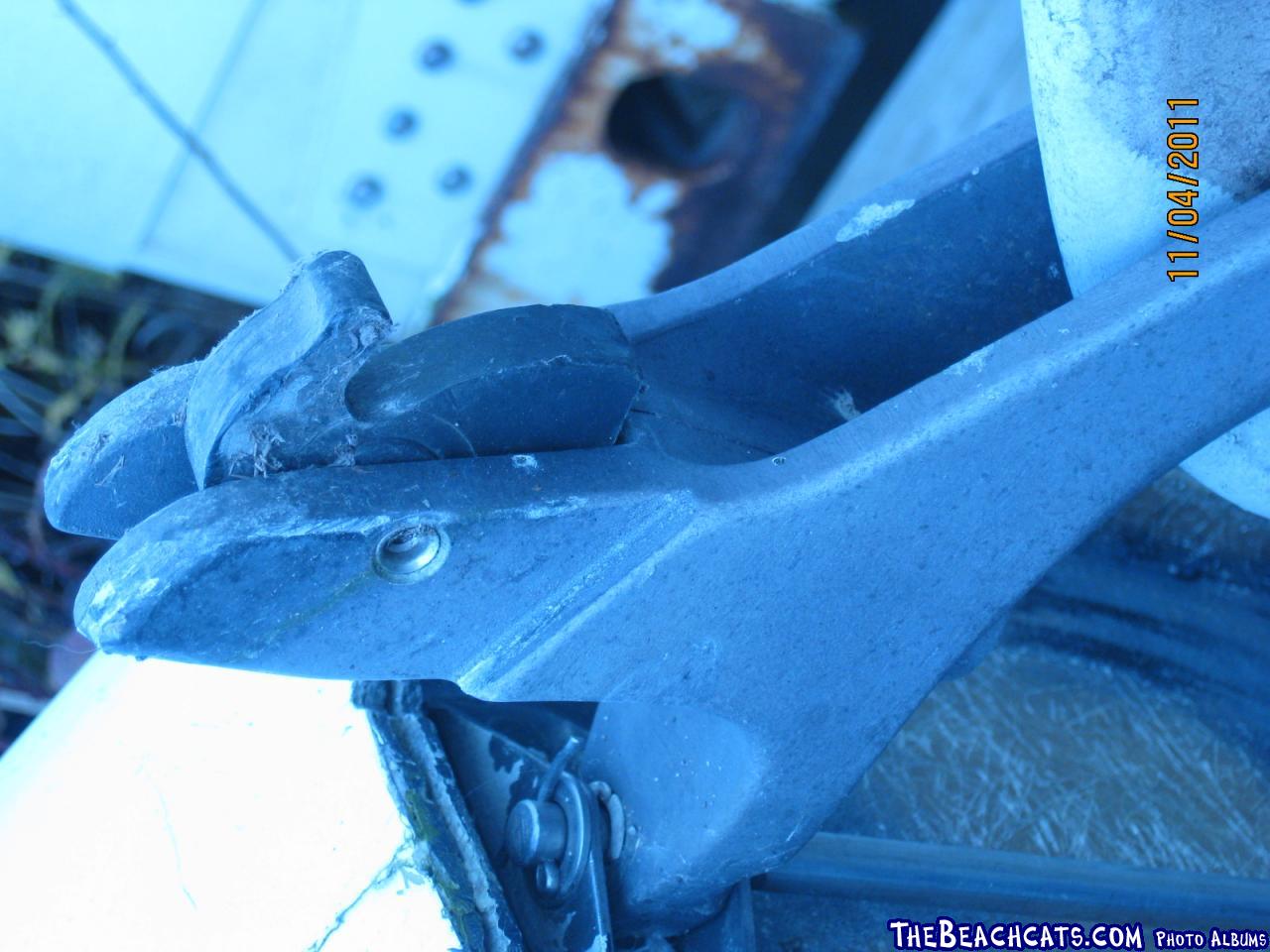

I took a photo today of inside the rudder guts. The "block" that is bolted onto the top of the casting is aluminum. The weird shaped thing inside is some kind of delrin like material. The tiller arms are straight.
Does this make it the "new" system? They seem to work quite slick.

--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
--
Edchris177

Rank: Chief

Registered: Nov 26, 2009

Last visit: Aug 10, 2024

Posts: 2531
Posted: Nov 04, 2011 - 08:01 PM

Edchris177I took a photo today of inside the rudder guts. The "block" that is bolted onto the inside top of the casting(not visible in the photo) is aluminum. The weird shaped thing in the photo is visible when you pop the tiller arms up, is some kind of delrin like material. The tiller arms are straight.
Does this make it the "new" system? They seem to work quite slick. Thanks, I don't know much about Hobie rudders.

--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
--
DamonLinkous

Rank: Administrator

Registered: Jul 19, 2001

Last visit: Apr 17, 2025

Posts: 3457
Posted: Nov 05, 2011 - 02:42 PM

Edchris177
Does this make it the "new" system? They seem to work quite slick.

Yes, those are the good ones. Look in good shape, the plastic cam can be replaced when it gets badly bent or cracked, the replacement kit comes with a special screw to replace the current rivet holding them on.

Lube with some white grease or whatever you have handy for best operation. The tension of release is adjustable by the plastic screw that comes up from underneath and compresses a spring inside.

It's good maintenance to make sure you can turn that screw, remove it and clean the spring and top plug and replace.

--
Damon Linkous
1992 Hobie 18
Memphis, TN

Join the discussion at the all new TheBeachcats.com Forums HERE.
https://thebeachcats.temp…l.host/forums/site-talk/
--
Edchris177

Rank: Chief

Registered: Nov 26, 2009

Last visit: Aug 10, 2024

Posts: 2531
Posted: Nov 05, 2011 - 08:04 PM

Thanks for the intel Damon. I have not decided whether to sell them, or keep them & put them on my boat. They work better at locking the rudder up than my bungee system.

--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
--
rehmbo

Rank: Mate

Registered: Apr 27, 2011

Last visit: Dec 13, 2022

Posts: 163
Posted: Nov 07, 2011 - 05:59 AM

If you can find a couple of EPO rudders to fit in there, then you'll have a great setup.

I've had a few challenges where the cam went into the down position prematurely (due to my error). Getting it back up is not too easy while out on the water. Adjusting the position of the small plate/bolt assy in the upper casting helped cure this.

--
Jeff R
'88 H18 "Jolly Mon"
'10 C2 USA1193
NE IN / SE MI
cramsailing.com
--
RicardOben

Rank: Mate

Registered: Jan 24, 2012

Last visit: Feb 26, 2016

Posts: 173
Posted: Feb 01, 2012 - 09:22 AM

Does anyone think this would work on a 5.5? the stock rudder system on a Nacra sucks, I know some love it but after 20 years on Hobie rudders this old dog does not like the nacra strings, pivmatic and shock cord stuff at all.

I guess has anyone tried it? Let me know, Ricardo.

--
Lake Perry KS
H-18
N-5.5 UNI +spin
--
DanBerger

Rank: Mate

Registered: Oct 02, 2002

Last visit: Aug 13, 2020

Posts: 214
Posted: Feb 01, 2012 - 11:03 AM

They will work, but you will probably have to relocate your gudgeons. The Hobie 18 new style system is great--especially if you get EPO rudders.

I have most of the 'kit' to upgrade to the newer style Nacra system if you want to go that route. It is in the Classifieds under 'Nacra Parts'. There is another ad with some of the parts I'm missing, too.
erice

Rank: Mate

Registered: Feb 19, 2008

Last visit: Aug 26, 2023

Posts: 671
Posted: Feb 01, 2012 - 03:30 PM

Edchris177Thanks for the intel Damon. I have not decided whether to sell them, or keep them & put them on my boat. They work better at locking the rudder up than my bungee system.

many mod their old nacras to add a rudder up line going from rudder to a jam cleat riveted up by the pivomatic

did mine a couple of years ago and have never had to touch the pivomatic bungee
